Product name : photovoltaic systems converter 800V input power inverter
Item : 201451422927
input voltage: :
output voltage: :
output current: :
output power: :
size: :
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

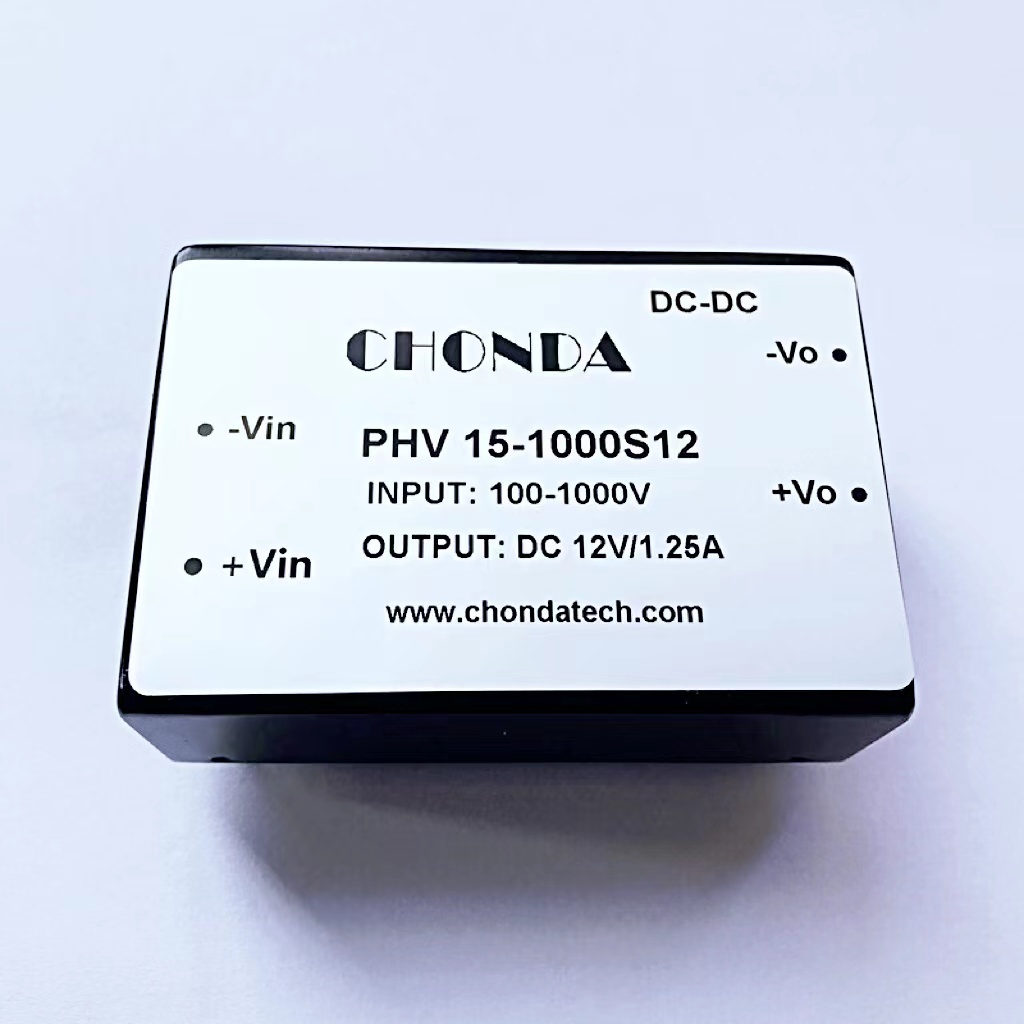

photovoltaic systems converter 800V input power inverter    solar photovoltaic

Mainly founction features:

Input:  DC DC wide input voltage 100-1000VDC

Input:  DC DC wide input voltage 210-1200VDC

Protection:  input over voltage protection,short circuit over voltage protection

Outline sealed:  ultra-thin small integration design, high efficiency high density

Cooling method:  Natural cooling, without additional radiator

Power:  5-25W

Industrial standard produts design, international size

Products type:

model

size

power

output V1/AM

output V2/AM

ripple

efficiency

NH05-V2S05

70×48×23.5mm

5W

5V/1A



100

75

NH05-V2S12

5W

 12V/0.42A 80



100

80

NH05-V2S24

5W

24V/0.23A 82



100

82

NH10-V2S05

70×48×23.5mm

10W

5V/2A



100

77

NH10-V2S12

10W

12V/0.9A



100

81

NH10-V2S15

10W

15V/0.66A



100

81

NH10-V2S24

10W

24V/0.45A



100

82

NH15-V2S05

70×48×23.5mm

15W

5V/3A



100

77

NH15-V2S12

15W

12V/1.25A



100

82

NH15-V2S24

15W

24V/0.625A



100

84

NH20-V2S05

70×48×23.5mm

20W

5V/4A



100

77

NH20-V2S12

20W

12V/1.66A



100

82

NH20-V2S24

20W

24V/0.83A



100

84

NH25-V2S05

70×48×23.5mm

25W

5V/5.0A



100

77

NH25-V2S12

25W

12V/2.0A



100

82

NH25-V2S15

25W

15V/1.66A



100

83

NH25-V2S24

25W

 24V/1.0A



100

84

Input characteristic:

Input voltage range:: 1001000VDC210-1200VDC

Input current:   100VDC

NH05       100mA , typ

NH10       230mA , typ

NH15       250mA , typ

surge current    10A (TYP) 100V    20A (TYP) 1200V

Output characteristic:

Output voltage steady accuracy: ±1%

Original source effect: ±0.5% (typ)

Load adjust rate: (10%~100%) ±2% (typ)

Min load: 0%

Output ripple and noise(peak value) 100mV(typ) (20MHz Bandwidth)

Short-circuit protection long time Continuous,/automatic resume

Output over exceed current protection ≥1.1 times

General characteristic:

Woking temperature: -40℃+55℃

Power reduction rate:3.75% / ℃

Storage temperature:-40℃+105℃

Outshell temperature:+80℃ max

Cut off current time:80ms(typ)/ at Vin:100VDC

Start delay time:500ms(typ)/ at Vin:1200VDC

Dynamic response: 25% standard load move rate ±4%/500uS

Humidity: 95% max

Temperature drift: 0.02%/℃

Switching frequency: 65-100kHz(typ)

Efficiency:  75%(typ)

Insolation: 4000VDC/1Minspecial 3000VAC

Insolation resistance input to output : 500Vdc 100000G

Leakage current:0.03mA RMS typ. 1200VDC

Saftey class: CLASS Ⅰ

MTBF: >215,000h @25℃

for more details pls visit http://www.chondatech.com/html_news/New-ProductsDC-DC-converter-input-100V-to-1000V-37.html
