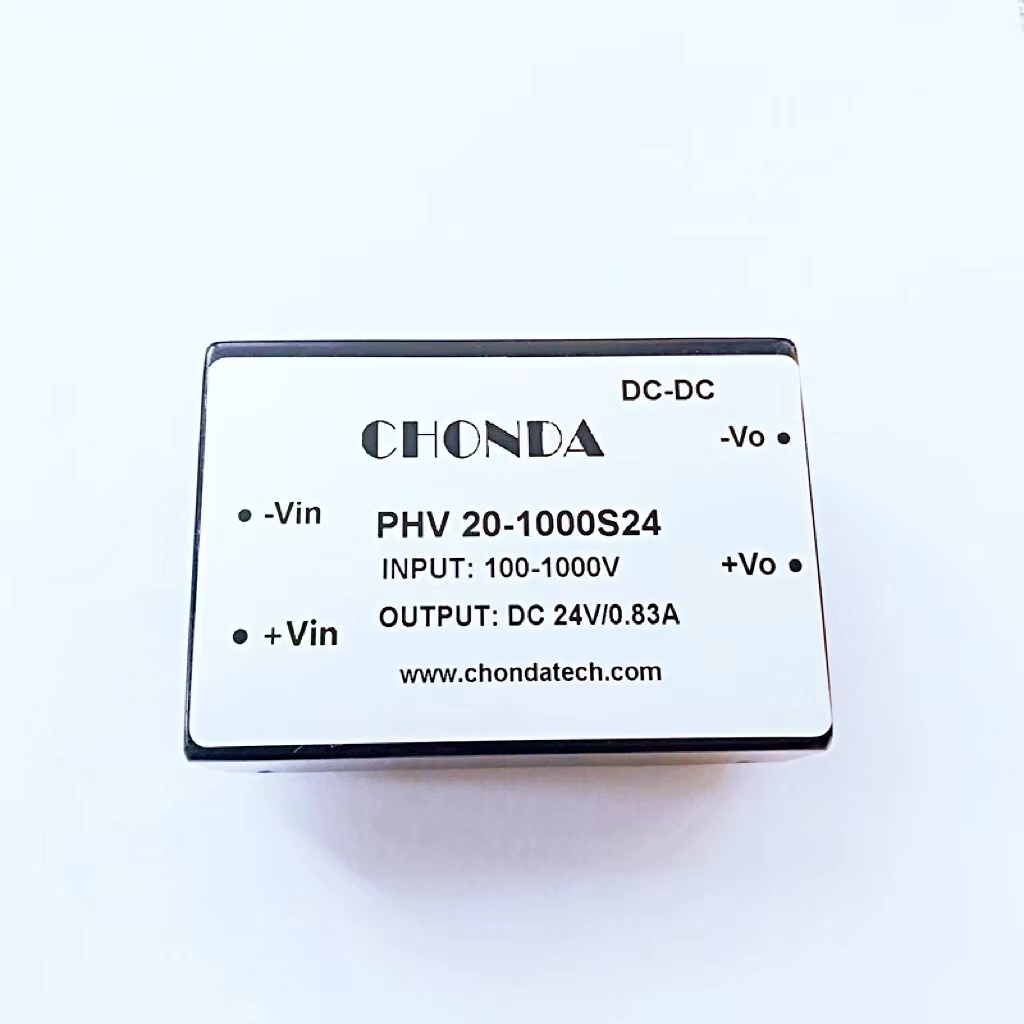

Product name : 1000V high voltage dc dc converter for germany solar
input voltage: :
output voltage: :
output current: :
output power: :
size: :
 Enlarge Image                   Back
             [Next Product]→


Details:


1000V high voltage dc dc converter for germany solar  photovoltaic power generation

photovoltaic industry power supply, application in the combiner box, controllers, etc., can provide customers with devices stable operating voltage.

Mainly founction features:

Input:  DC DC wide input voltage 100-1000VDC

Input:  DC DC wide input voltage 210-1200VDC

Protection:  input over voltage protection,short circuit over voltage protection

Outline sealed:  ultra-thin small integration design, high efficiency high density

Cooling method:  Natural cooling, without additional radiator

Power:  5-25W

Industrial standard produts design, international size

Products type:

model

size

power

output V1/AM

output V2/AM

ripple

efficiency

NH05-V2S05

70×48×23.5mm

5W

5V/1A



100

75

NH05-V2S12

5W

 12V/0.42A 80



100

80

NH05-V2S24

5W

24V/0.23A 82



100

82

NH10-V2S05

70×48×23.5mm

10W

5V/2A



100

77

NH10-V2S12

10W

12V/0.9A



100

81

NH10-V2S15

10W

15V/0.66A



100

81

NH10-V2S24

10W

24V/0.45A



100

82

NH15-V2S05

70×48×23.5mm

15W

5V/3A



100

77

NH15-V2S12

15W

12V/1.25A



100

82

NH15-V2S24

15W

24V/0.625A



100

84

NH20-V2S05

70×48×23.5mm

20W

5V/4A



100

77

NH20-V2S12

20W

12V/1.66A



100

82

NH20-V2S24

20W

24V/0.83A



100

84

NH25-V2S05

70×48×23.5mm

25W

5V/5.0A



100

77

NH25-V2S12

25W

12V/2.0A



100

82

NH25-V2S15

25W

15V/1.66A



100

83

NH25-V2S24

25W

 24V/1.0A



100

84

 Input characteristic:

Input voltage range:: 1001000VDC210-1200VDC

Input current:   100VDC

NH05       100mA , typ

NH10       230mA , typ

NH15       250mA , typ

surge current    10A (TYP) 100V    20A (TYP) 1200V

Output characteristic:

Output voltage steady accuracy: ±1%

Original source effect: ±0.5% (typ)

Load adjust rate: (10%~100%) ±2% (typ)

Min load: 0%

Output ripple and noise(peak value) 100mV(typ) (20MHz Bandwidth)

Short-circuit protection long time Continuous,/automatic resume

Output over exceed current protection ≥1.1 times

General characteristic:

Woking temperature: -40℃+55℃

Power reduction rate:3.75% / ℃

Storage temperature:-40℃+105℃

Outshell temperature:+80℃ max

Cut off current time:80ms(typ)/ at Vin:100VDC

Start delay time:500ms(typ)/ at Vin:1200VDC

Dynamic response: 25% standard load move rate ±4%/500uS

Humidity: 95% max

Temperature drift: 0.02%/℃

Switching frequency: 65-100kHz(typ)

Efficiency:  75%(typ)

Insolation: 4000VDC/1Minspecial 3000VAC

Insolation resistance input to output : 500Vdc 100000G

Leakage current:0.03mA RMS typ. 1200VDC

Saftey class: CLASS Ⅰ

MTBF: >215,000h @25℃


Input voltage and the load relationship characteristic:

Dynamic load response:


Size:

outside shell size

A

B

C

D

E

F

G

H

I

20

70

62

5.75

23

48

23.5

6.0

4

sectional dimension:1.0mm  terminal accuracy:0.1mm    other accuracy: ±0.5mm

1

2

3

4

5

6

7

8

9

No Pin

 -Vin

 +Vin

 No Pin

 -Vo

 No Pin

 No Pin

 No Pin

 +Vo
