Mini Power Module for robots

Mini Power Module for robots

Mini Power Module for robots


  • Product No.: 20241617567
  • input voltage:: powerful dc dc solutions for robotics

Details



powerful dc dc solutions for robotics MINI power module for robots

Mainly founction features
  • Installation method of the machine shell
  • Installation with guide rail
  • Efficiency up to 90%
  • Maximum output power of 150W
  • Operating temperature range: -40℃ to +85℃
  • No-load power consumption, low radiation interference, ripple noise less than 1%Vo
  • High isolation withstand voltage of 1500V DC or 800V AC
  • Certified and designed to be environmentally friendly, compliant with RoHS directive.
They feature isolated and regulated single-output, with an efficiency of up to 90%. The products offer high isolation voltage of 1500VDC and can operate in a temperature range of -40℃ to +85℃.

They include input undervoltage protection, as well as output overvoltage, overcurrent, and short circuit protection functions. These products are widely used in various fields such as drones, robots, railway equipment, medical devices, industrial control, power systems, instruments, and telecommunications.

Products type


Note: the input range has 2:1 & 4:1 and has two packages, the one is case package and the other is DIN rail, the output voltage over the 48V will be special designed. Please tell us your request before order with thanks.

Input characteristics

 Output characteristics

 General characteristics
 Product characteristics curve (please see the datasheet for reference )

 Typical Product Features  (please see the datasheet for reference )


Product Wiring Diagram   (please see the datasheet for reference )

 Application Circuit  (please see the datasheet for reference )

 EMC solution – recommendation circuits   (please see the datasheet for reference )


Case Installation and pin definition      81.5 * 68* 17mm


     Note: Unit: mm(inch)
     Terminal rated current: 24A
     Wire diameter: 22-14AWG (2.5mm2)
     Connector torque size: M3 screw, 0.5N.m
     Unstated tolerance: X.X±0.5mm(X.X ±0.02inch)

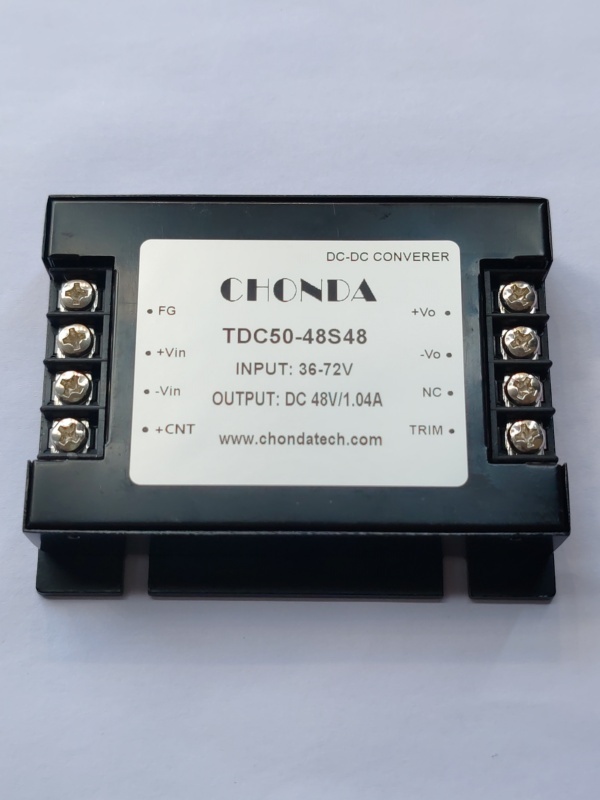

DIN Installation and pin definition       81.5*55.5*27.2mm



     Note: Unit: mm(inch)
     Terminal rated current: 24A
     Wire diameter: 22-14AWG (2.5mm2)
     Connector torque size: M3 screw, 0.5N.m
     Unstated tolerance: X.X±0.5mm(X.X ±0.02inch)
