Step down/buck DC DC converter 5V/12V/15V/24V/48V/72V/110V to 5V/12V/15V/24V/48V 50W ~ 50W

Product No.: 202418121719

Details

Step down/buck DC DC converter 5V/12V/15V/24V/48V/72V/110V to 5V/12V/15V/24V/48V 50W ~ 50W

Mainly founction features

Installation method of the machine shell
Installation with guide rail
Efficiency up to 90%
Maximum output power of 150W
Operating temperature range: -40℃ to +85℃
No-load power consumption, low radiation interference, ripple noise less than 1%Vo
High isolation withstand voltage of 1500V DC or 800V AC
Certified and designed to be environmentally friendly, compliant with RoHS directive.

They feature isolated and regulated single-output, with an efficiency of up to 90%. The products offer high isolation voltage of 1500VDC and can operate in a temperature range of -40℃ to +85℃.

They include input undervoltage protection, as well as output overvoltage, overcurrent, and short circuit protection functions. These products are widely used in various fields such as drones, robots, railway equipment, medical devices, industrial control, power systems, instruments, and telecommunications.

Products type

Note: the input range has 2:1 & 4:1 and has two packages, the one is case package and the other is DIN rail, the output voltage over the 48V will be special designed. Please tell us your request before order with thanks.

Input characteristics

Output characteristics

General characteristics

Product characteristics curve （please see the datasheet for reference )

Typical Product Features  （please see the datasheet for reference )

Product Wiring Diagram （please see the datasheet for reference )

Application Circuit  （please see the datasheet for reference )

EMC solution – recommendation circuits （please see the datasheet for reference )

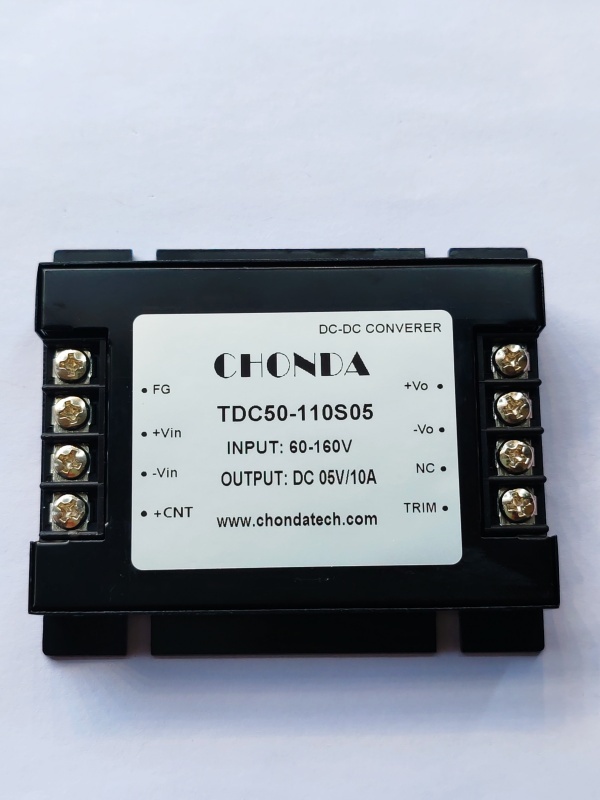

Case Installation and pin definition 81.5 * 68* 17mm
