DC/DC Converter Single & Dual Output 100W
DC/DC Converter Single & Dual Output 100W
Mainly founction features
- Installation method of the machine shell
- Installation with guide rail
- Efficiency up to 90%
- Maximum output power of 150W
- Operating temperature range: -40℃ to +85℃
- No-load power consumption, low radiation interference, ripple noise less than 1%Vo
- High isolation withstand voltage of 1500V DC or 800V AC
- Certified and designed to be environmentally friendly, compliant with RoHS directive.
They feature isolated and regulated single-output, with an efficiency of up to 90%. The products offer high isolation voltage of 1500VDC and can operate in a temperature range of -40℃ to +85℃.
They include input undervoltage protection, as well as output overvoltage, overcurrent, and short circuit protection functions. These products are widely used in various fields such as drones, robots, railway equipment, medical devices, industrial control, power systems, instruments, and telecommunications.
Products type
Note: the input range has 2:1 & 4:1 and has two packages, the one is case package and the other is DIN rail, the output voltage over the 48V will be special designed. Please tell us your request before order with thanks.
Input characteristics
Output characteristics
Input characteristics
Output characteristics
General characteristics
Product characteristics curve (please see the datasheet for reference )
Typical Product Features (please see the datasheet for reference )
Product Wiring Diagram (please see the datasheet for reference )
Application Circuit (please see the datasheet for reference )
Typical Product Features (please see the datasheet for reference )
Product Wiring Diagram (please see the datasheet for reference )
Application Circuit (please see the datasheet for reference )
EMC solution – recommendation circuits (please see the datasheet for reference )

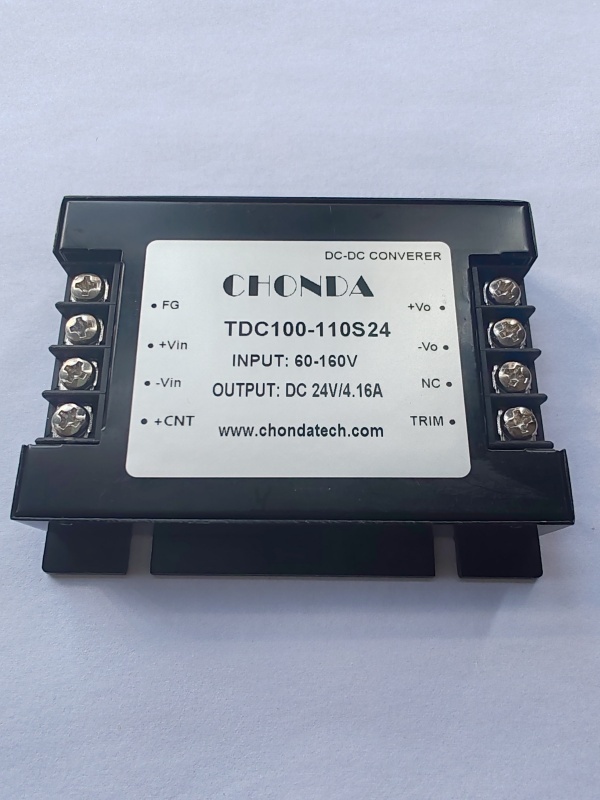

Case Installation and pin definition 81.5 * 68* 17mm
Note: Unit: mm(inch)
Terminal rated current: 24A
Wire diameter: 22-14AWG (2.5mm2)
Connector torque size: M3 screw, 0.5N.m
Unstated tolerance: X.X±0.5mm(X.X ±0.02inch)
DIN Installation and pin definition 81.5*55.5*27.2mm
Note: Unit: mm(inch)
Terminal rated current: 24A
Wire diameter: 22-14AWG (2.5mm2)
Connector torque size: M3 screw, 0.5N.m
Unstated tolerance: X.X±0.5mm(X.X ±0.02inch)
