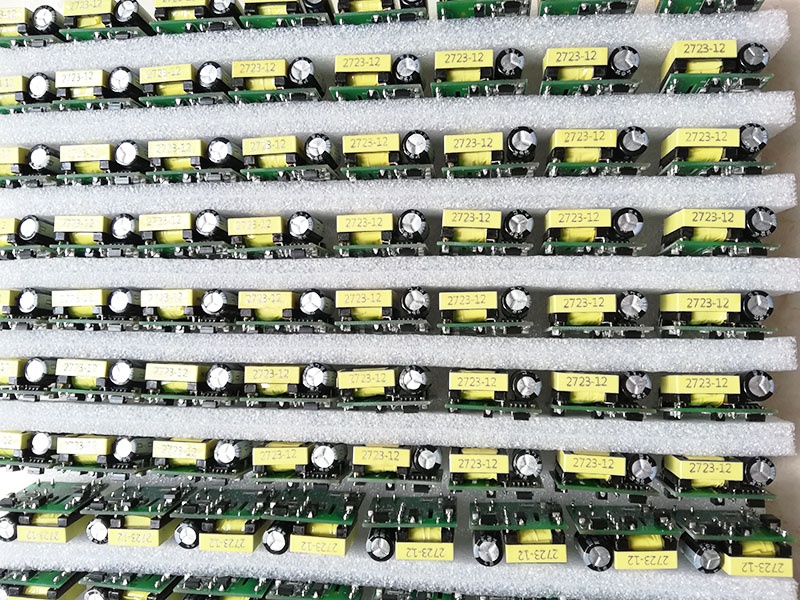

220v to 9v/12v/15v/24v 1W

220v to 9v/12v/15v/24v 1W

220v to 9v/12v/15v/24v 1W


  • Product No.: AC110S09-1W

Details



220v to 9v/12v/15v/24v 1W

Mainly founction features:

Wide lnput Voltage :85-264VAC or 110-370VDC

lsolation voltage: 2500VAC/1mA

Efficiency: Up to 83% Custom Design Availbale

Output Shor t Circuit Condition

Overvoltage protection  Thermal Shutdown Protection

Ripple&noise(20MHz Band Width): 50mVp-p

Operation Temperature: -40~+80°C

RoHS compliant

MTBF > 1000000Hrs

Parameter

Conditions

Min

Typ

Max

Units

Isolated Voltage

Input to output

Flash test 60S,leakage current<0.5mA

2500





VAC

I/O-Shell

2500





VAC

Isolated Resistance

Input to output

Isolation voltage 500VDC

1000





I/O-Shell

1000





Operation Temperature

Input=VMin form Vmax , Typical output load

-40



80

°C

Storage Temperature



-55



105

C

Storage Ambient Humidity







95

%

Lead Temperature

Solder form shell 1.5mm , time 10S





300

°C

Shell Material

UL 94V-0 Package Material
